4-103777-0
Manufacturer:
TE Connectivity
Mfr.Part #:
4-103777-0
Datasheet:
Description:

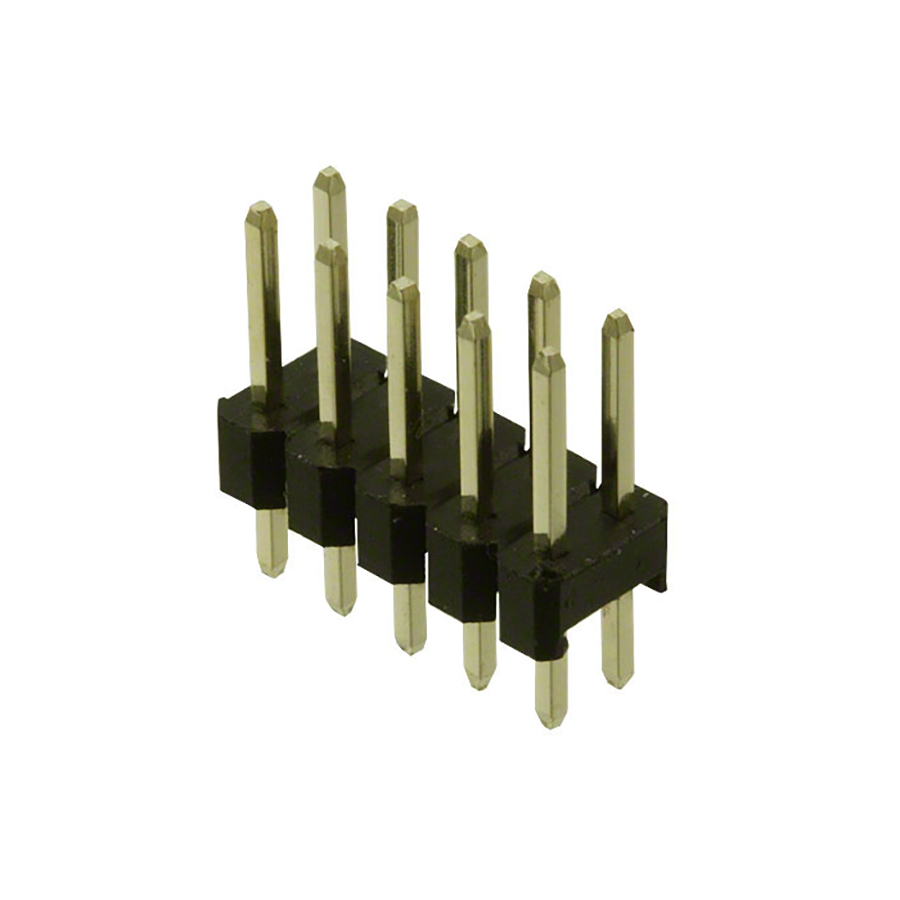

Headers and Wire Housings Through Hole Header, Breakaway Number of Positions:80 Pitch:2.54 mm
| Parameter | Value |
|---|---|
| Length | 101.19 mm |
| Termination | Solder |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -65 °C |
| Packaging | Bulk |
| Depth | 4.88 mm |
| Lead Free | Contains Lead |
| Radiation Hardening | No |
| RoHS | Compliant |
| Lead Pitch | 2.54 mm |
| Insulation Resistance | 5 GΩ |
| Contact Plating | Tin |
| Lead Length | 2.29 mm |
| Pitch | 2.54 mm |
| Current Rating | 3 A |
| Flammability Rating | UL94 V-0 |
| Approvals | CSA |
| Orientation | Vertical |
| Operating Supply Voltage | 30 V |
| Lifecycle Status | Production (Last Updated: 1 week ago) |
| Color | Black |
| Gender | Pin (Male) |
| Number of Contacts | 80 |
| ELV | Non-Compliant |
| Connector Type | Header, Breakaway |
| Number of Positions | 80 |
| Number of Rows | 2 |
| Row Spacing | 2.54 mm |
| Housing Material | Thermoplastic |
| Contact Style | Pin |
| Contact Current Rating | 3 A |
| Housing Color | Black |
| Contact Mating Length | 5.842 mm |
| Keyed | No |
| PCB Mounting Orientation | Vertical |
| PCB Thickness | 1.5748 mm |
| Contact Gender | Male |
| High Temperature Housing | No |
| Mating Post Length | 5.842 mm |
| Contact Shape | Square |
| High Speed Serial Data Connector | No |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 1 week ago) |
| Termination Post Length | 2.29 mm |
Stock: 363
Distributors
pcbx
pcbxUnit Price$2.09629
Ext.Price$2.09629
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $2.09629 | $2.09629 |
| 10 | $1.97745 | $19.77450 |
| 25 | $1.82124 | $45.53100 |
| 50 | $1.67737 | $83.86850 |
| 100 | $1.62776 | $162.77600 |
| 300 | $1.57961 | $473.88300 |
| 500 | $1.53289 | $766.44500 |
| 1000 | $1.47048 | $1470.48000 |
